Our products
Unser stetig wachsendes Angebot umfasst aktuell folgende Produkte:
Ventilprüfgerät Vbox zum einfachen Inbetriebnehmen und Testen von Proportional- und Stetigventilen mit Onboard-Elektronik
PowerAnalyzer, Leistungs- und Energiemessgerät, das die komfortable und exakte Analyse elektrischer Energie- und Leistungsdaten mit einer Abtastrate bis zu 2 kHz erlaubt
Serviceman plus CAN zur Messung und Aufnahme von Systemdaten hydraulischer und pneumatischer Anlagen

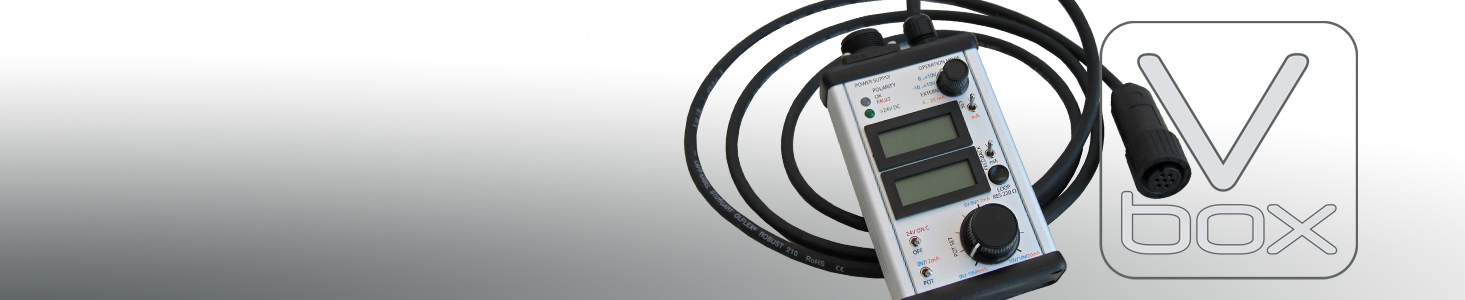

Vbox – valve testing device
With our newly developed Vbox we provide an easy to handle tool for the commissioning and testing of proportional valves and continously adjustable valves. In the course of development, we placed particular emphasis on simple operability and comprehensive protective circuits. Onboard-electronics and central connector allow a comfortable use.
Maximum functionality & guaranteed ease of use
With the Vbox the checking of the electrical interface to the proportional valve (power supply and electrical target value signal from the controller) is easily possible. The proportional valve can be taken into operation from the hydraulic engineer by the integrated target value specification and a power adapter for the power supply completely autonomously – without control engineer. The Vbox guarantees user-friendliness with its clear and simple design, color-coded operating concept and the extensive protective circuit for the control electronics on the proportional valve.
Easy handling for service technicians
24 VDC via separate plug-in power supply or system power supply
Supply voltage control (polarity reversal and voltage level)
.20mA, 0..10V, +/-10V target value specification (optional clearance signal on Pin C)
Target value specification via potentiometer or connected control
Convenient digital display of target value and actual value
Built-in protective circuits prevent the destruction of the valve electronics in case of faulty connection

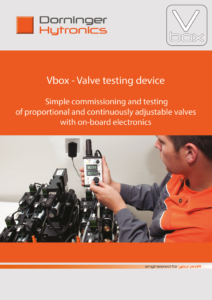

Flyer Vbox
Manual Vbox

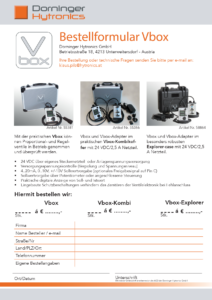

Purchase order form

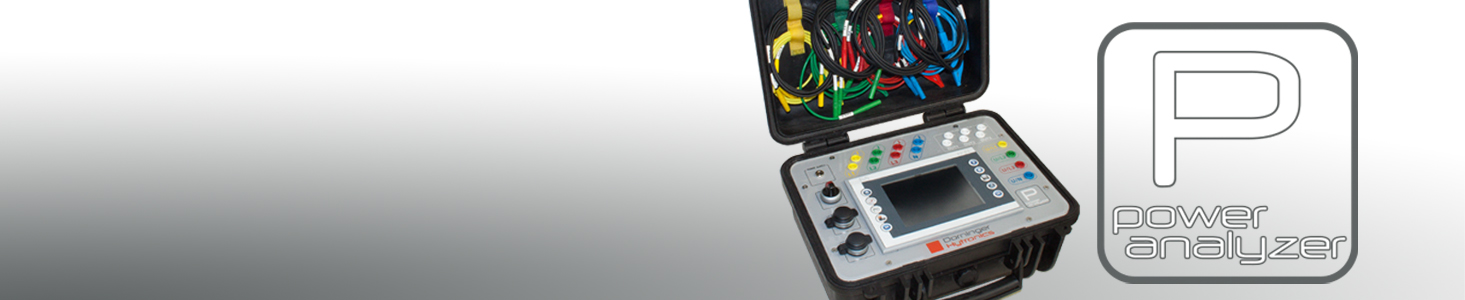

PowerAnalyzer – Power and energy meter
The PowerAnalyzer measures all electrical energy and performance data precisely – with a sampling rate up to 2 kHz – in control cabinets and electrical power components in 1-phase, 2-phase and 3-phase systems.
Maximale Messgenauigkeit & exakte Datenanalyse
RMS values of currents and voltages are measured with the corresponding phase angles, as well as the active, reactive and apparent powers of the 3 phases individually and in total. In addition, the electrical energy consumption can be captured detailed in all aspects. The PowerAnalyzer delivers high-precision frequency measurement data and is an instrument for a comprehensive recording of consumption over an adjustable period of time.
Outstanding measurement tool with new standard for the sampling rate
Measuring ranges: Voltage up to 655 VAC, current up to 100 or 1000A (max. 1A secondary), frequency 45… 65 Hz, sampling rate (voltage & current) up to 2 kHz
Data can be acquired via USB interface, export to a csv file for easy processing in spreadsheet programs
Immediate analysis of performance data using charts on the integrated touch panel
Basic mode for immediate measurement start and output of standard metrics, in expert mode up to 12 data measurements can be selected and additional settings (measuring time, current probe measurement ratio,…) are possible
For easy transport and protection, the unit is screwed into an extremely rugged explorer case

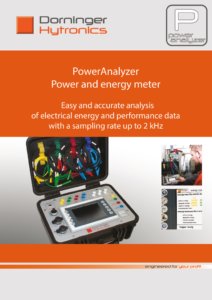

Flyer Power Analyzer
Manual Power Analyzer

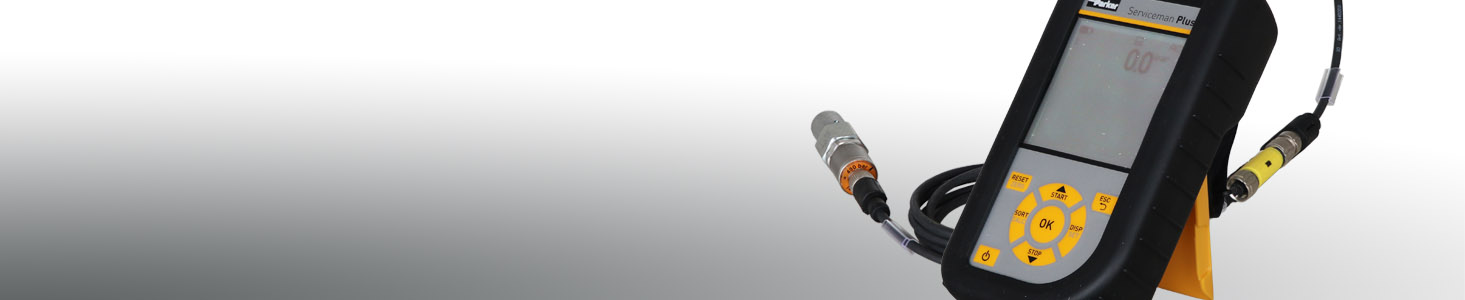

Serviceman plus CAN
The SensoControl Serviceman plus CAN is used for measurement and recording of system data, especially of pressures in hydraulic and pneumatic systems.
Indispensable tool for starting up or troubleshooting hydraulic systems
In addition to pressure also flow, temperature and speed can be measured. A comprehensive range of accessories is available to make use of all diagnostic possibilities.
You can choose between CAN bus sensor communication (CAN interface for up to 3 sensors) or two traditional analog inputs.
For easy identification of the pressure and measuring ranges the transmitters are marked in colour
SensoWin software for data analysis and trend recording in connection with a Windows computer
Can be used in industrial hydraulics, mobile hydraulics, lubricating oil systems and cooling systems for commissioning, maintenance and problem detection, system evaluation and optimisation
